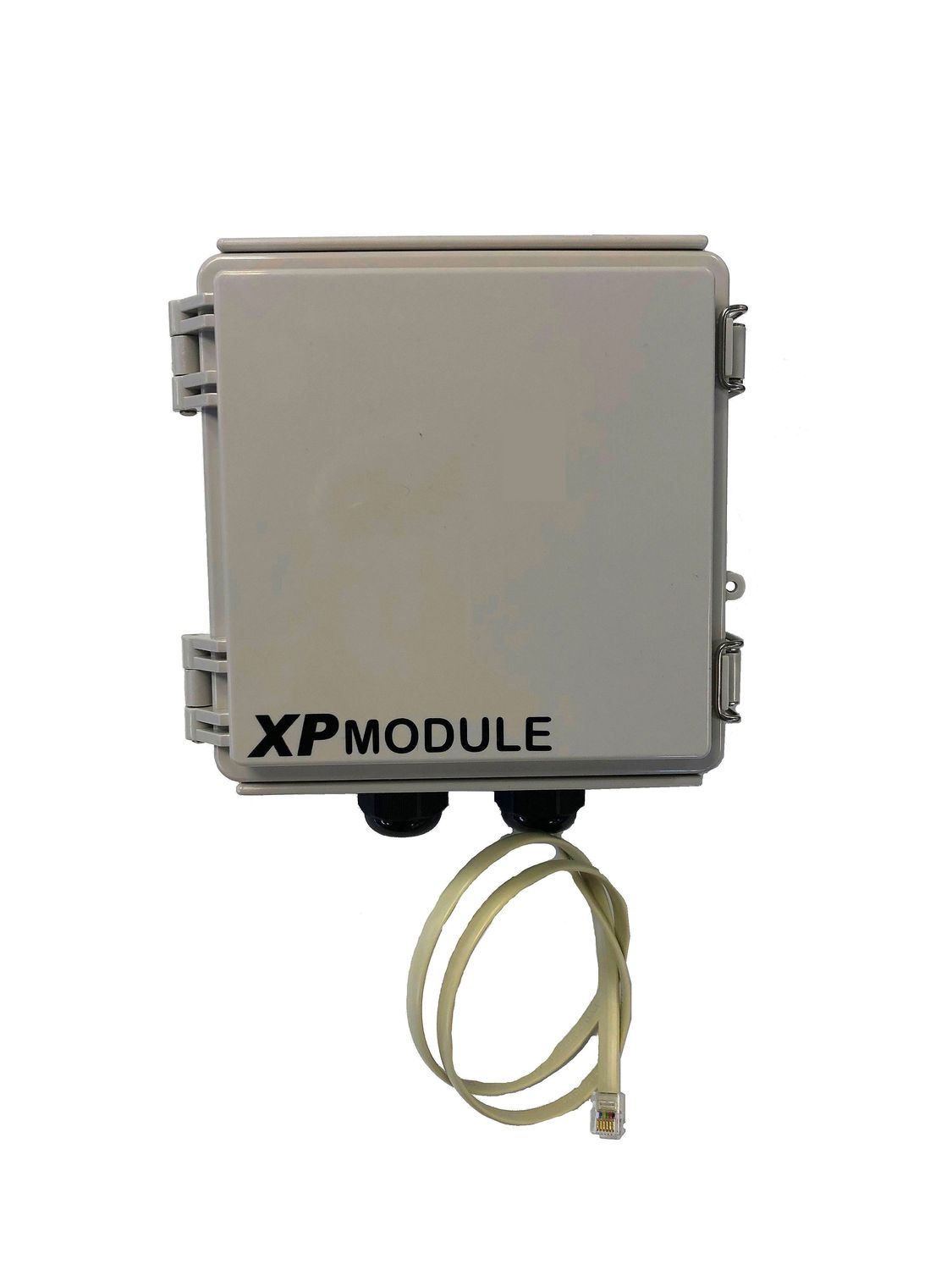

XP 0000 Expansion Module

XP0000 Expansion Module

Compatible ONLY with ChickenMaster PRO Firmware Version 02.03A

Need more power to operate multiple external doors? The XP0000 Expansion Module is the ideal solution for larger poultry operations requiring additional actuator capacity.

Designed specifically for the CMPRO-SWB-PWM30A (Firmware Version 02.03A) Control Switchboard, the XP0000 increases the external door switching capacity from 10 Amps to 25 Amps, allowing you to automate larger systems with confidence.

Key Features

• Increases external door switching capacity from 10A to 25A
• Incorporates two heavy-duty 25 Amp, 12 Volt DC bi-directional relays
• Controls up to 12 external door actuators from a single module
• Purpose-built for seamless integration with the ChickenMaster PRO system
• Ideal for larger mobile egg trailers, chicken tractors, and fixed poultry sheds

Built for Harsh Australian Conditions

The XP0000 is housed in a rugged UV-stabilised, high-impact polycarbonate enclosure designed to withstand demanding outdoor environments. Featuring 304 stainless steel mounting clips and lid clasps, it delivers exceptional durability and corrosion resistance.

The enclosure, together with its cable glands, is IP67 weatherproof rated, providing complete protection against dust ingress and resistance to temporary water immersion, making it suitable for reliable operation in harsh outdoor farming conditions.

Specifications

• Compatibility: ChickenMaster PRO Firmware Version 02.03A only
• Operating Voltage: 12V DC
• Maximum Switching Capacity: 25 Amps
• Relay Type: 2 × 25A Bi-directional DC Relays
• Maximum Door Actuators: Up to 12 (system dependent)
• Enclosure: UV-Stabilised High-Impact Polycarbonate
• Hardware: 304 Stainless Steel
• Protection Rating: IP67 Weatherproof

Note: The combined current draw of all connected actuators must not exceed 25 Amps.
Refer to the installation notes for actuator current requirements and maximum recommended configurations.

Download Electrical Schematic

Model Number	XP 0000
Enclosure Type	Poly-carbonate UV Stabilised
Enclosure IP Rating	IP67 Fully Weatherproof
Enclosure Dimensions	H150mm x W150mm x D100mm
Enclosure Mounting Method	External 304 Stainless Steel Mounting Clips
Enclosure Lid Clasps	304 Stainless Steel Lid Clasps
Cable Entry Method	2 Off M20mm IP67 Wiring Glands, Located at bottom of Switchboard
Working Temperature Range	-10.0 Celsius to +50.0 Celsius
Switchboard Voltage Range	12 – 15 Volt DC
External Wiring Connections	Large Gauge Screw Terminal Strip
Relay Fuse Rating & Type	25 Amp Automotive Blade Fuse (1 Fuse Supplied)
Relay 1 & 2 Switching Capacity	25 Amps at 12 Volts DC
Product Compatibility	ChickenMaster PRO model CMPRO-SWB-30A With Firmware Version 02.03A
Interconnection wiring cable to XP 0000 Control Switchboard	600mm RJ45 Communication Cable (Supplied)
External Door Output for Left Side Doors (Terminals 1 & 3)	Bi-Directional 12 Volt DC 25 Amp Relay Output Maximum 6 Actuators
External Door Output for Right Side Doors (Terminals 2 & 4)	Bi-Directional 12 Volt DC 25 Amp Relay Output Maximum 6 Actuators
Warranty	12 Months from date of purchase
Australian Made	Designed & Manufactured in Melbourne, AUSTRALIA.
Support Service	Phone Support 7 Days a week from 9am to 3pm

Notes:

Because of the wide variety of actuators in the market place, you must check the Current Rating on the ones you are intending to use.
More than 12 actuators can be used as long as the current being drawn does not exceed the rated capacity of the 25 Amp Bi-directional relays.

Example 1: Using 16 actuators, each rated at 1.50 Amps = 24.0 Amps, OK to use.

Example 2: Using 10 actuators, each rated at 2.50Amps = 25 Amps, OK to use.

Example 3: Using 8 actuators, each rated at 4.0 Amps = 32 Amps, NOT OK to use.
