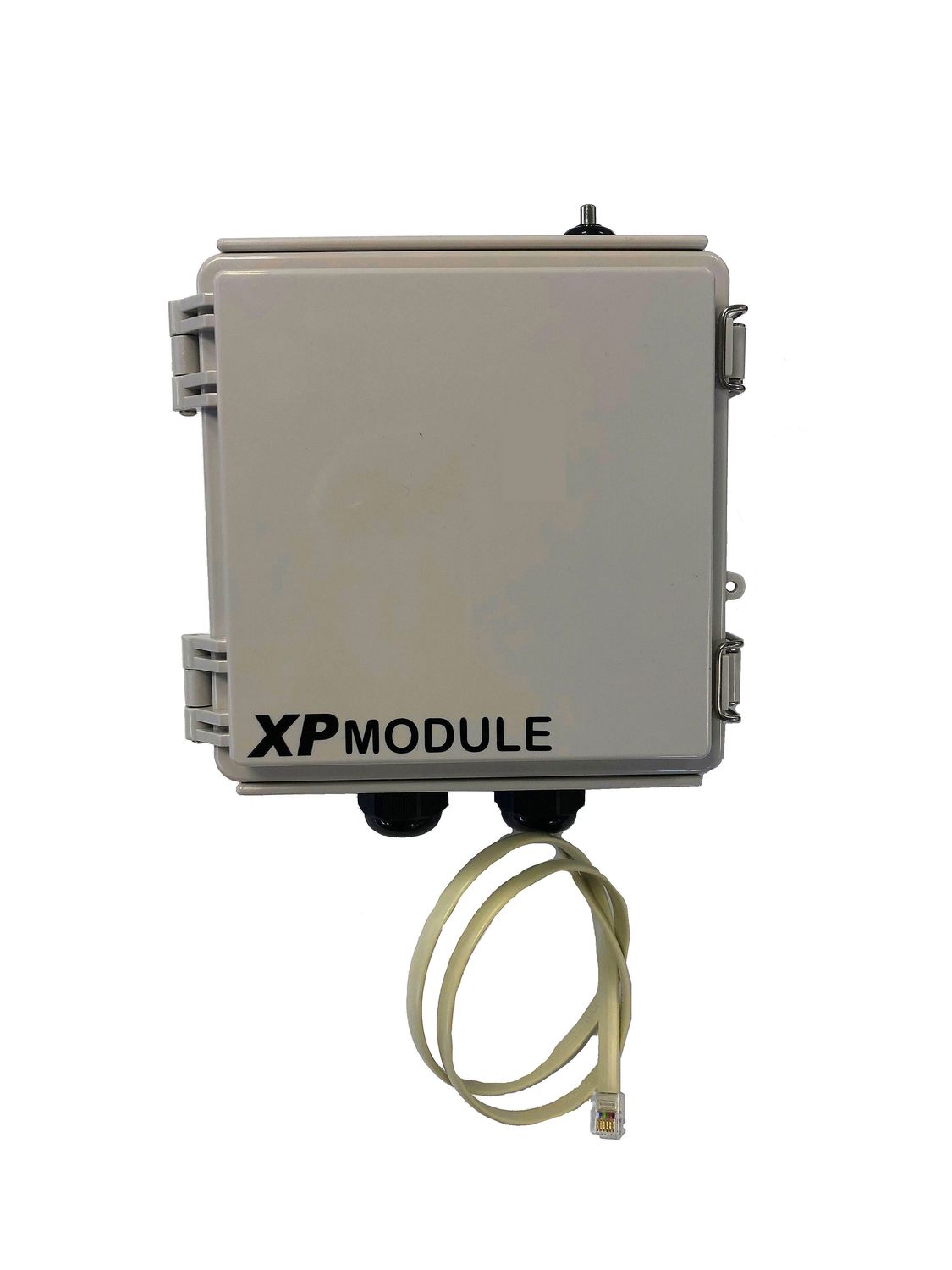

XP1000 Expansion Module with Integrated Temperature Control

ONLY Compatible with ChickenMaster PRO Firmware Version 02.03A

Take your ChickenMaster PRO automation to the next level with the XP1000 Expansion Module.
Designed to increase the switching capacity of your CMPRO-SWB-PWM30A (02.03A) Control Switchboard, the XP1000 upgrades the External Door output from 10 Amps to 25 Amps, allowing you to control larger loads with complete confidence.

More than just a power expansion, the XP1000 features a fully integrated Temperature Controller capable of automatically managing Cooling, Heating, or Misting systems.
All temperature settings and operating parameters are programmed directly from the ChickenMaster PRO Control Panel, providing seamless operation without the need for additional controllers.

Built to withstand demanding agricultural environments, the XP1000 is housed in a rugged high-impact UV-stabilised polycarbonate enclosure with 304 stainless steel mounting clips and lid clasps.
Combined with IP67-rated weatherproof cable glands and enclosure, it is designed to deliver reliable performance in even the harshest outdoor conditions.

Features

• Increases External Door switching capacity from 10 Amps to 25 Amps
• Integrated Temperature Controller for Cooling, Heating, or Misting
• Fully programmable through the ChickenMaster PRO (Firmware 02.03A) control panel
• Heavy-duty 25 Amp maximum switching capacity
• High-impact UV-stabilised Polycarbonate Enclosure
• 304 stainless steel mounting clips and lid clasps for superior corrosion resistance
• IP67 weatherproof enclosure and cable glands for harsh outdoor environments
• Simple integration with existing ChickenMaster PRO systems

Maximum Load: 25 Amps

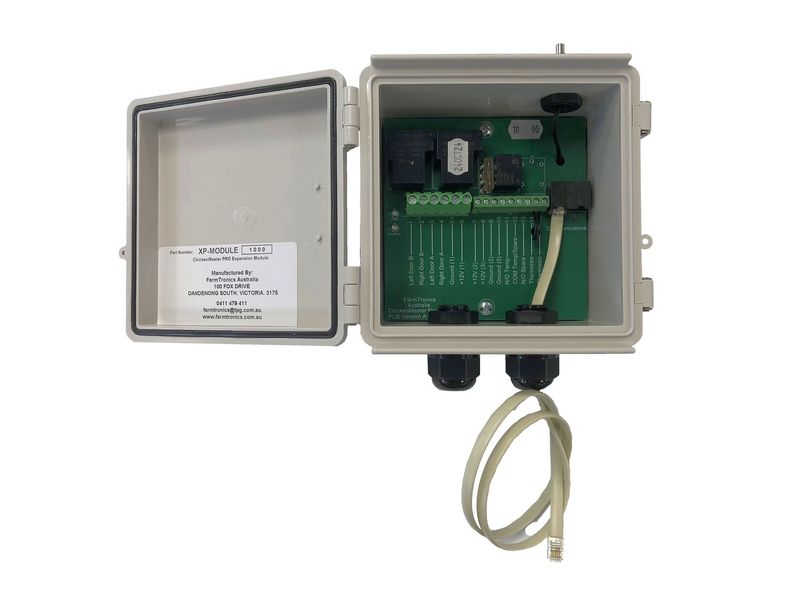

Download Electrical Schematic

Model Number	XP 1000
Enclosure Type	Poly-carbonate UV Stabilised
Enclosure IP Rating	IP67 Fully Weatherproof
Enclosure Dimensions	H150mm x W150mm x D100mm
Enclosure Mounting Method	External 304 Stainless Steel Mounting Clips
Enclosure Lid Clasps	304 Stainless Steel Lid Clasps
Cable Entry Method	2 Off M20mm IP67 Wiring Glands, Located at bottom of Switchboard
Working Temperature Range	-10.0 Celsius to +50.0 Celsius
Switchboard Voltage Range	12 – 15 Volt DC
External Wiring Connections	Large Gauge Screw Terminal Strip
Relay Fuse Rating & Type	25 Amp Automotive Blade Fuse (1 Fuse Supplied)
Temperature Control Relay	10 Amps at 12 Volts DC
External Door Relays 1 & 2 Switching Capacity	25 Amps at 12 Volts DC
Product Compatibility	ChickenMaster PRO model CMPRO-SWB-30A With Firmware Version 02.03A
Interconnection wiring cable	600mm RJ45 Communication Cable (Supplied)
External Door Output for Left Side Doors (Terminals 1 & 3)	Bi-Directional 12 Volt DC 25 Amp Relay Output Maximum 6 Actuators
Temperature Sensor	Mounted on Top of the Module An External Remote Sensor Option is also available
External Door Output for Right Side Doors (Terminals 2 & 4)	Bi-Directional 12 Volt DC 25 Amp Relay Output Maximum 6 Actuators
Warranty	12 Months from date of purchase
Australian Made	Designed & Manufactured in Melbourne, AUSTRALIA.
Support Service	Phone Support 7 Days a week from 9am to 3pm

Notes:

Because of the wide variety of actuators on the market place, you must check the Current Rating on the ones you are intending to use.
More than 12 actuators can be used as long as the current being drawn does not exceed the rated capacity of the 25 Amp Bi-directional relays.

Example 1: Using 16 actuators, each rated at 1.50 Amps = 24.0 Amps, OK to use.

Example 2: Using 10 actuators, each rated at 2.50Amps = 25 Amps, OK to use.

Example 3: Using 8 actuators, each rated at 4.0 Amps = 32 Amps, NOT OK to use.
