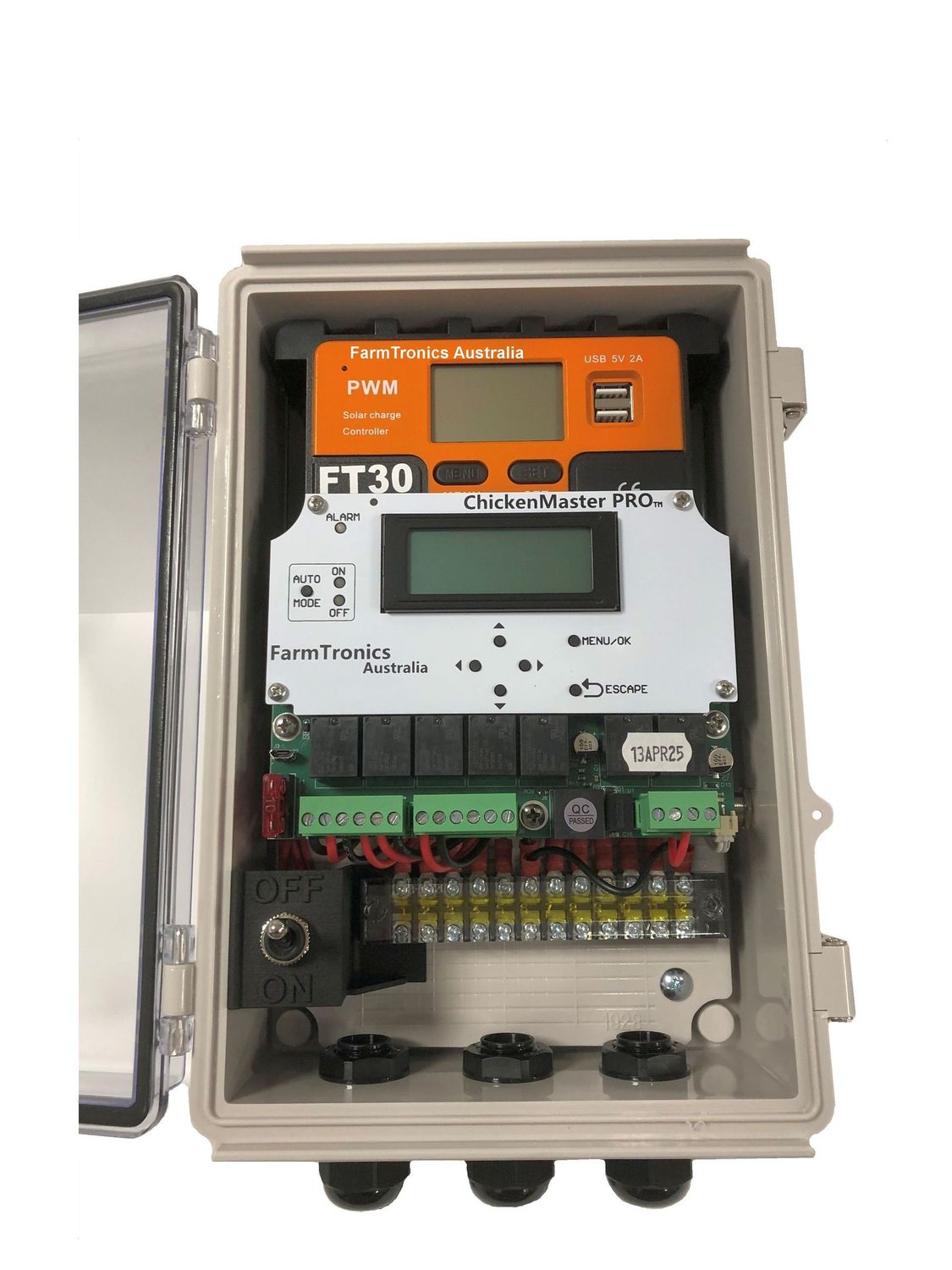

ChickenMaster PRO™ Automation Switchboard
(CMPRO-SWB-PWM30A)

Complete Automation for Modern Egg Farming

The CMPRO-SWB-PWM30A ChickenMaster PRO™ Automation Switchboard is a purpose-built automation solution designed specifically for mobile chicken trailers, egg farming caravans, coops, and fixed poultry sheds.

At the heart of the system is the proprietary ChickenMaster PRO™ Automation Controller, providing reliable, intelligent automation that saves time, reduces labour, and improves flock management.

Automate Your Daily Farm Tasks

The ChickenMaster PRO™ can automatically control:

• Opening and closing external doors
• Opening and closing nest box gates
• Switching internal lighting on and off
• Courtesy lighting for the egg collection area with push-button timer control

Manual operation is always available through the intuitive four-button keypad, allowing you to override any automated function whenever required.

Intelligent Geographic Automation

Unlike conventional timer-based controllers, the ChickenMaster PRO™ is the only automated free-range egg farming controller that incorporates Latitude and Longitude geographic positioning.

Simply enter your farm's location once, and the controller automatically calculates sunrise and sunset every day—anywhere in the world.

This means:

• No seasonal timer adjustments
• No changing clocks throughout the year
• Consistent daily operation
• Less maintenance and fewer mistakes

Every sunrise and sunset parameter can also be fine-tuned, giving farmers complete flexibility to match their own management practices and production requirements.

Integrated 30 Amp Solar Charging System

The CMPRO-SWB-PWM30A includes a powerful 30 Amp PWM three-stage Solar Charge Controller with LCD display.

The integrated charger helps maintain battery performance throughout the year, especially during the shorter winter days, ensuring your automation system remains reliable.

Compatible battery types include:

• Flooded Lead Acid
• AGM
• GEL
• Lithium Li(LiCoMn)O₂
• Lithium LiFePO₄

Built for Australian Farming Conditions

Every component has been selected for durability in harsh outdoor environments.

Features include:

• High-impact UV-stabilised polycarbonate enclosure
• Clear lid for viewing LCD displays without opening the enclosure
• 304 stainless steel mounting clips and lid clasps
• IP67 weatherproof enclosure
• IP67 cable glands
• IP67 weatherproof courtesy light push button

Designed to withstand dust, rain, sunlight, vibration, and demanding farm conditions, the ChickenMaster PRO™ is built to provide years of dependable service.

Why Choose ChickenMaster PRO™?

✔ Save valuable time every day
✔ Reduce manual labour and repetitive tasks
✔ Improve flock management and egg quality
✔ Automatic sunrise and sunset operation anywhere in the world
✔ Fully programmable to suit your farming practices
✔ Integrated solar battery charging system
✔ Rugged IP67 weatherproof construction
✔ Designed specifically for free-range egg producers

Whether you're operating a single mobile chicken trailer or a large fixed laying facility, the ChickenMaster PRO™ Automation Switchboard delivers professional, reliable automation that lets you spend less time managing equipment and more time growing your business.

Specifications:

Model Number	CMPRO-SWB-PWM-30A
Enclosure Type	Polycarbonate with Clear Lid, UV Stabilised
Enclosure IP Rating	IP67 Fully Weatherproof
Enclosure Dimensions	H280mm x W190mm x D100mm
Enclosure Mounting Method	External 304 Stainless Steel Mounting Clips (4 Off Supplied)
Enclosure Lid Clasps	304 Stainless Steel Lid Clasps
Cable Entry Method	3 Off M20mm IP67 Wiring Glands, Located at bottom of Switchboard
Working Temperature Range	-10.0 Celsius to +50.0 Celsius
ChickenMaster PRO™ Display	20 Character x 4 Line LCD Backlit Display
Solar Controller Display	LCD Graphics Display
Solar Panel Input Specification	12 Volt DC Maximum 390 Watts
Solar Panel Vmp Specification	Voltage at MAXIMUM POWER (Vmp) = 18 Volts DC (Maximum)
Solar Panel Voc Specification	Voltage at OPEN CIRCUIT (Voc)= 21 Volts DC (Maximum)
Solar Charge Controller TYPE	PWM - Pulse Width Modulated 3 Stage Charging Function
USB Ports (2 Off)	Solar Controller USB Ports 2 Amps at 5.0 Volts DC
Switchboard Voltage Range	12 – 15 Volt DC
Battery Type Suitability	Lead Acid(Flooded, GEL & AGM) & Lithium (Li(LiCoMn)O2 & LiFePO4)
Battery Type Default Setting	Lead Acid(Flooded, GEL or AGM)
Solar & Battery Isolation Switch	1 x 20 AMP Single Toggle Switch, Double Pole Single Throw (DPST)
External Wiring Connections	Large Gauge 12 Way Screw Terminal Strip

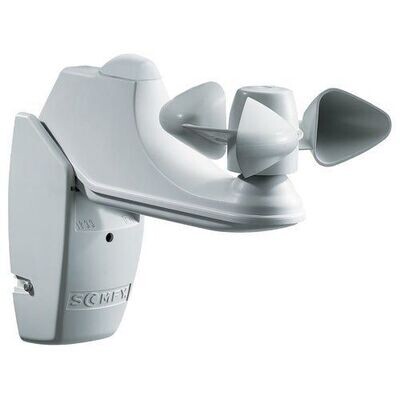

Wind Sensor Compatible (Optional)	Configurable to work with the FarmTronics FT-WS Wind Sensor to close your External Doors on extremely windy days
Main Power Fuse Rating & Type	10 Amp Automotive Blade Fuse
Internal Lighting Output	Positive Supply 12 Volt DC Relay Output
Nest Box Gates Output	Bi-Directional 12 Volt DC Relay Output
External Doors Output	Bi-Directional 12 Volt DC Relay Output
External Door High Current Relay Module (Optional)	Compatible with the CMPRO ARM 30A Auxiliary Relay Module when using more than four External Door Actuators
ChickenMaster PRO Controller	Fully programmable ChickenMaster PRO™ Controller
ChickenMaster PRO Firmware	Version 02.03A
Geographic Location Method	Via Latitude & Longitude User Input
Memory Backup	Non Volatile Flash Memory
Clock and Date Backup	96 Hour Built in Super Capacitor
Courtesy Light Timer	Programmable Time Delay, Default setting is 30 minutes
Courtesy Light Output	Positive Supply 12 Volt DC Relay Output
Courtesy Light Push Button	IP67 Rated Momentary Push Button mounted on the right side of the Automation Switchboard
Courtesy Light Remote Push Button Input (Optional)	Option for an additional Remote Push Button allowing the Courtesy Lights to be switched ON from outside the Caravan or Shed
Nest Box Gates Voltage Fail-safe Feature	Fail-safe for the Nest Box Gates if the battery voltage is failing or low (Default Value = 11.0 Volts) Forces Nest Box Gates OPEN
Event History	Up to 1000 past Events can be viewed, great for fault finding
Status ITEM Screens (15 Off)	Multiple Status Items can be viewed without going into menus

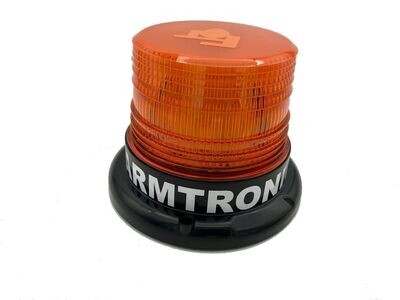

Alarm STROBE Light Compatible (Optional)	Configurable to work with a FarmTronics FT-SL Strobe Light providing an external visual indication for a variety of faults
Warranty	12 Months from date of purchase
Australian Made	Designed & Manufactured in Melbourne, AUSTRALIA
Support Service	Phone Support 7 Days a week from 9am to 3pm
